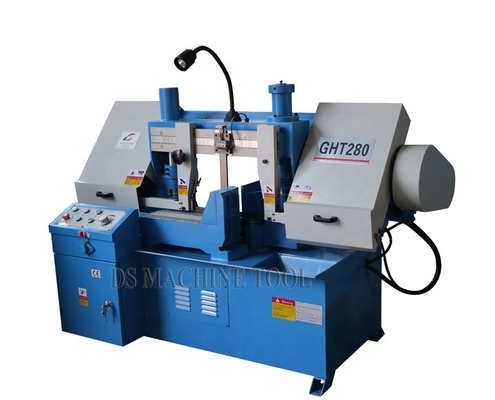

GHT280 Swivel Band saw machine , china band saw machine horizontal,swivel bandsaw machine
Extremely rigid dual-column cast -iron construction with heavy swivel console
Three cutting speeds-directly shifted via main drive motor
Infinitely variable saw frame feed
Horizontal saw frame swivels up to 45º
Saw frame automatically returns to home position at the end of the cut
Extra rigid, adjustable saw blade guide
Including hydraulic workpiece clamping with clamping pressure control
Specifications |
GHT280 |
|
Cutting capacity 90°(mm) |
Rectangular |
320*280 |
Circular |
280 |
|
Square |
280 |
|
cutting capacity 45° (mm) |
Rectangular |
280*240 |
Circular |
200 |
|
Square |
200 |
|
cutting capacity 30° (mm) |
Rectangular |
280*240 |
Circular |
240 |
|
Square |
240 |
|
Blade speed: (m/min) |
27,45,69 |
|
Blade size (mm) |
3505*27*0.9 |
|
Blade feed type |
Hydraulic stepless |
|
Blade tension type |
Manual |
|
Workpiece feed type |
Manual |
|
Workpiece clamp type |
Hydraulic |
|
Main motor power (kw) |
2.2 |
|
Hydraulic motor power (kw) |
0.55 |
|
coolant pump motor power (kw) |
0.04 |
|
N.W. / G.W (kg) |
700/800 |
|
overall dimensions (mm) |
1900*1400*1500 |
Standard equipment:
hydraulic workpiece clamping, 1 saw blade belt, material support stand,
coolant system, work lamp, operator manual
Export standard: plywood packing
After-sale services
1. Technical support online service provided.
2. Technical files service provided.
3. Spare parts replacement and repair service provided.
4. Questions will be replied within 24 hours
We will supply enough spare parts and accessories with our machine when shipment. Within one year after receiving our machine, If there are any damaged parts or accessoreis, We will supply them to you by air-mail free of charge.
Every month only the band saw machine series we will export almost 50 sets different kinds machine in the worldwide.
We think we can give you the most comprehensive support not only service but also techniques.
View more about: www.dsmachinetool.com
Work shop
1. Delivery Time:
For one set machine, will be within 25 days after deposit.
For 5-10 sets same machines, will be within 35-40 days after deposit.
For 5-10 sets different machine, will be within 35-40 days after deposit.
2. MOQ:
1 set machine.
If you need machine with your own: logo, brand, model etc,please negotiate with us.
3. Shipping:
For machine: Usually by sea;
For documents: by international express, such as: DHL,UPS,TNT,EMS,FEDEX
4.Machine color and voltage:
we can according customer requirement.
