Conveyor Belt Clamped Rubber Vulcanizing Press / Conveyor Belt Clamped Making Machine XLB-DQ

1 Set
MOQ
Conveyor Belt Clamped Rubber Vulcanizing Press / Conveyor Belt Clamped Making Machine XLB-DQ
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Model Number: XLB-DQ
Condition: New
Voltage: 380 V
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas
Certificazione: CE,ISO9001:2008 ,BV ,TUV,
price: competitive
quality: superior in quality
character: efficiency safety
HEATING: STEAM /oil
Informazioni di base
Certificazione: CE,ISO9001:2008 ,BV ,TUV
Model Number: XLB-DQ
Termini di pagamento e spedizione
Packaging Details: channel steel fixed at the bottom and covered with plastic sheet.
Supply Ability: 400 Set/Sets per Month
Descrizione di prodotto

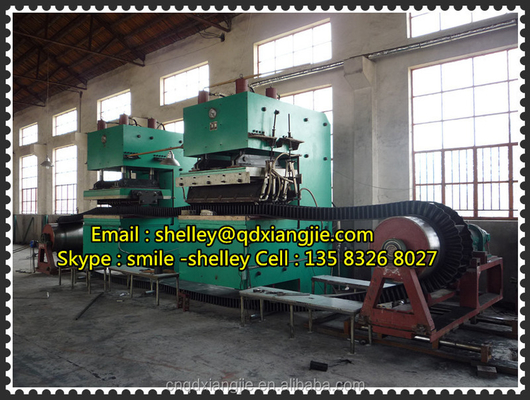

Cleated rubber Conveyor Belt vulcanizing press / Cleated Conveyor Belt making machine

Product Description

Specifications

1.PLC control safe&convenient
2.High speed open/close mold
3.100% real manufacturer

This machine is used for Vulcanizng Sidewall conveyor belt .This kind of Corrugated sidewall conveyor belt vulcanizing machine can vulcanize sidewall conveyor belt with clapboard and skirt side. The pattern of the clapboard and skirt side can be designed by customer's specific request.The corrugated sidewall conveyor belt is special patterned conveyor belt. Use corrugated sidewall conveyor belt vulcanizing machine to vulcanize corrugated side wall belt, can prevent spillage.

The size and pattern of the corrugated side wall can be changed by changing mould. One machine for all kinds.

Good quality with reasonable price. Easy operation with convenient maintenance. Low labor intensity and low energy consumption

WE CAN DESIGN AND MANUFACTURE ALL KINDS OF NON-STANDARD RUBBER MACHINERY ACCORDING TO THE REQUIREMENTS OF CUSTOMERS.

If you had more questions, pls contact me by telphone or Trade Manager( instant messager in alibaba) without any hesitation, my mobile is:0086-13583268027

Technical specifications:

ModelsBD120-1200(900~1200)-2000(1000~2000)BD240-1200(1000~1200)-2000(1500~2000)BD630-2200-2000
System pressure160kg/cm2160kg/cm2160KG/CM2
Dia.of hydraulic ram(skirt edge)140(dia.)*700mm(stroke) *6pcs160(dia.)*500mm(stroke)140(dia.)*700mm(stroke) *6 pcs
Dia. of hydraulic ram(division plate)160(dia.)*850mm(stroke) *6pcs180(dia.)*500mm(stroke)160(dia.)*850mm(stroke) *6 pcs
Traction linear velocity of driving roller9.2m/min9.2m/min9.1m/min
Skirt edge splicing120mm(Max.)240mm(Max.)630mm(Max.)
The spec. of heating platen(width*length*thickness)1200*2000*60mm1200*2000*60mm2200*2000*70mm
the height of guard board80~120mm80~240mm80~630mm
The width of base belt650~1200mm(Max.)650~1200mm(Max.)2200mm(Max.)

Our Services

1.Payment terms : 30 % paid by T/T as deposit,The balance 70% is paid after the buyer's testing in the seller's factory before delivery.

2. Lead time : generally in 75 working days

3. Export packaging standard : channel steel fixed at the bottom and covered with plastic sheet

4. Warranty :1 year

5.24 hours technical support by email

6. Calling or door - to -door service.

7. Provide videos for each machine.

8. Installation terms and training:

we will send one engineer to your factory to guide installation and test running the production line, until you can

operate the machine skilled.

If you have any further queries pleasedon't hesitate to contact me at 0086-532-58707771/86- 135 8326 8027 .It's my grest pleasure to be on service of you .
