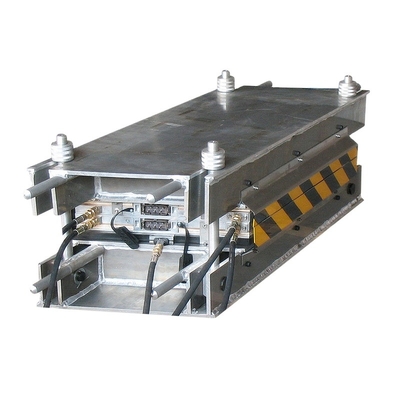

Factory Beltwin 2pieces Portable Cloth Rubber Belt Joint Vulcanizing Machine With Pressure Bag

1 Unit
MOQ
$25,000.00(>=1 Units)
prezzo
Factory Beltwin 2pieces Portable Cloth Rubber Belt Joint Vulcanizing Machine With Pressure Bag
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Type: Vulcanizer
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Motor
Voltage: 380V. 660V. 480V. 440V. 415V. 400V or 220V
Dimension(L*W*H): 1916*1676*994
Warranty: 1 Year
Key Selling Points: Automatic
Power (kW): 17 kW
Weight (KG): 500 KG
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Shops
Showroom Location: United Kingdom
After-sales Service Provided: Engineers available to service machinery overseas
Max. temperature: 200℃
Belt width: from 450mm to 1500mm
Degree of the heating platen: 22 °/17 °/ 20 °
Max pressure: 100PSI or 200PSI
After Warranty Service: Video technical support, Online support, Spare parts
Local Service Location: United Kingdom
Certificazione: ISO9001
Informazioni di base
Certificazione: ISO9001
Termini di pagamento e spedizione
Packaging Details: Wooden box
Supply Ability: 20 Unit/Units per Month
Descrizione di prodotto
Product Description



Product Details



Brand: Beltwin

Model : DSLQ-F

Item: Beltwin rubber belt vulcanizer

Power :1600~1700W



Because our vulcanizing press are all customized as your optional,

so plz When order or inquiry, pls offer below informaiton:



1.Heating platen length (A=?)
2.Belt max width (B=?)
3.Working pressure 100PSI / 200PSI
4.Working voltage  380V/ 660V / 480V / 440V / 415V / 400V or 20V
What kind of press normal type or 2pcs type





Product Description
Usage
Fabirc rubber belts
Max belt width
450-1500mm
Pressure fluid
Hydraulic oil
Pressure
60P.S.I(4kg/cm²)/100P.S.I(7kg/cm²)
Vulcanizing temperature
Vulcanizing temperature:145℃ (adjustable 0~160℃)
Cooling system
Pressure pump for cooling, cooling time only 5mins (cooling from 145 to 75 degrees)
Degree of the heating platen
17/20/22° or optional.
Power voltage
 220V,380V,400V or as your optional



  • Vulcanizing temperature:

    145℃ (adjustable 0~200℃)

    Temperature-rising time (from normal temp to vulcanizing temp):

     ≤50 mins(around 25~30 mins normally)

    Improved cooling system: using pressure pump for cooling:

    only 5mins (cooling from 145 to 75 degrees)

1.Specification list

 2.Common Size Tables:

3.Main Components:

4.New Power Connect System: New plug & socket

5.Pressure bag system:

 Can used for both water and air, one time molding, without metal frame, light weight, testing pressure out of our factory is 2.5MPA.

6.Automaitc control panel:

With time control and digital temperature control. All the parts use high quality electric devices with CE certificated.In case of electronic controller failure



7.Heating platen: With rapid water cooling system, cooling from 145°C to 75°C, only need 5mins

8.About the cross beam model:

9.Shipping records: Air shipment and sea shipment bill of ladings

10. Sufficient Machines are Distrubuted Throughout the World


Packaging & Shipping

Weight: 100KGS

Dimension:1550*515*750mm



Delivery time:35days

Port of origin:SHANGHAI,CHINA

Company Information

Our Services

 What we can supply in below:

1.Total Solution

Provide all the equipment necessary for the complete fabrication of PVC, PU, and rubber conveyor belts.

2. Customized Design

We offer our design accords to your situation with competitive manufacturing process cost.

3. Free Training

Welcome to visit our workshop to test and train on-site by yourself. We offer training service for free.

4. Belting Fabrication

We have our own fabrication workshop and teams, supply belting products after fabrication.

FAQ



1.Are you manufacture?

Yes,we are.

And Beltwin has been working as manufacturing for several years.



2.Did you ever export to my country?

 We have ben exporting to over 60 countries, and we are now building the distributing net all over the world.

Just show me your location, and we will be happy to provide you project information.



3. Is it possible to get the best price from your company?

Our price is always competitive in the market, and we promise to offer the best price based on the same quality.



4.What service can you offer me?

a. Free Consultation Provided;

b. ODM Provided;

c. OEM Provided;

d. Premium After-sale Service Provided



Are you looking for conveyor belt machine with the best quality and the most competitive price?

Come to Beltwin, we warmly welcome for your visit & negotiation
