machine repairs workshop compact press made of aluminum for splicing and joint belt

1 Set
MOQ
machine repairs workshop compact press made of aluminum for splicing and joint belt
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Type: Vulcanizer
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Warranty of core components: 1 Year
Core Components: PLC, Engine
Voltage: 525V or as request
Dimension(L*W*H): 1020*830*630
Year: 2019
Warranty: 1 Year
Key Selling Points: Automatic
Power (kW): 22 kW
Weight (KG): 820 KG
Applicable Industries: Machinery Repair Shops, Energy & Mining
Showroom Location: Brazil, India, Kenya
After-sales Service Provided: Free spare parts
Name: Conveyor Belt Splicing Press
Beam Material: Aluminum Alloy
Color: As Request
Informazioni di base
Termini di pagamento e spedizione
Packaging Details: Standard wooden box packaging for ocean shipping
Descrizione di prodotto
Product Description

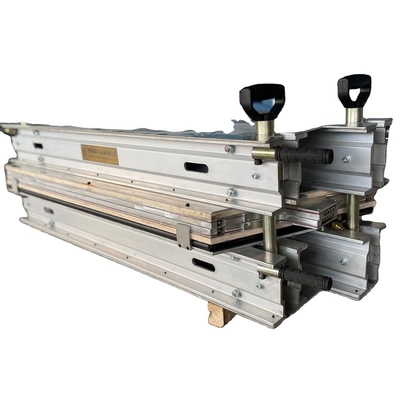

Compact press made in aluminium for belt splicing and joint











Technical data in millimeters correspond to the 16º models, and in inches to the 22º ones. The weight of the lower frame includes the bolts and the pins. The total weight includes the 2 heating platens and the pressure bag.

Model Belt (mm) G1 (mm) G3 (mm) A (mm) B (mm) C (mm) H (mm) Bottom frame weight (Kg) Top frame weight (Kg) Platen weight (Kg) Total weight (Kg)
E-Komp 650x350 650 184 338 780 350 750 364 28.5 22.6 20.1 95.7
E-Komp 800x350 800 194 358 940 350 904 364 33.4 27.2 24.6 114.4
E-Komp 1000x350 1000 204 378 1145 350 1101 364 39.6 33.2 31.4 141.0
E-Komp 1200x350 1200 229 428 1355 350 1303 364 46.2 39.3 35.4 162.9
E-Komp 1400x350 1400 249 468 1560 350 1500 364 56.2 45.2 40.8 190.6
E-Komp 1600x350 1600 274 518 1770 350 1701 364 63.0 51.3 46.3 215.4
E-Komp 650x500 650 189 348 780 500 750 520 38.3 32.3 29.1 134.3
E-Komp 800x500 800 204 378 940 500 904 520 45.2 38.9 35.1 160.9
E-Komp 1000x500 1000 209 388 1145 500 1101 520 49.3 42.2 42.8 185.0
E-Komp 1200x500 1200 244 458 1355 500 1303 520 63.2 56.1 50.6 229.9
E-Komp 1400x500 1400 274 518 1560 500 1500 520 76.1 64.6 58.3 268.1
E-Komp 1600x500 1600 324 618 1770 500 1701 520 85.3 73.3 66.1 303.1
E-Komp 650x600 650 194 358 780 600 750 624 44.8 38.7 35.0 160.0
E-Komp 800x600 800 209 388 940 600 904 624 53.0 46.7 42.2 191.8
E-Komp 1000x600 1000 214 398 1145 600 1101 624 63.3 56.9 51.3 232.4
E-Komp 1200x600 1200 254 478 1355 600 1303 624 74.5 67.3 60.8 274.6
E-Komp 1400x600 1400 284 538 1560 600 1500 624 89.2 77.5 69.9 319.6
E-Komp 1600x600 1600 334 638 1770 600 1701 624 130.5 116.7 79.4 420.7
E-Komp 1000x700 1000 254 478 1145 700 1101 728 77.3 66.4 59.9 274.6
E-Komp 1200x700 1200 284 538 1355 700 1303 728 90.2 78.5 70.9 323.6
E-Komp 1400x700 1400 304 578 1560 700 1500 728 102.6 90.4 81.6 371.4

APPLICATIONS /  Vulcanising and repair of heavy duty rubber belts. This press is particularly designed to realize vulcanised joints on solid-woven or metalcord belts. also efective on worn out belt.



SPLICING / Straight or rhombic. Step splices, finger splices...



MATERIAL / Platens and profiles are in extruded high yiels light alloy



PRESSURE / Hydraulic with water, provided by a hand or electrical pump. Water-bag pressure up to 18 bars cover all splice surface.



POWER SUPPLY / 400 V, three phases. Electrical control box with safety switch.



TEMPERATURE / Up to 392°F. Regulation by thermostats, possibility of manual or electronic regulation



COOLING / Approximatly 15 min



FEATURES /

• Modular concept with 17.78 or 20.67 inches wide elements.

• Quick and easy handling of the differents aluminium parts.

• Flexibility of heating plates and whole surface pressure by water-bags allowing to adapt to belt thickness differences




Accessories

Related Products



Company Information

   Qingdao Antai is located in the beautiful city of Qingdao. Antai has research and development centers and production workshops. It have 20 experienced technical staff and professional workers a total of 90 people. The company is strong in technology, the main products are Conveyor Belt Vulcanize Press, conveyor belt repair machine, conveyor belt splicing machine, conveyor  belt ply splitter  and its supporting equipment and spare parts. The heating element, pressurized water bag produced by Antai are widely used by the same industry manufacturers.







FAQ



1. Q:  Are you a manufacturer  or training company?

     A:  We are the manufacturer. We have our own plant,worker and techniques R&D department.



2 .Q:  Where is your factory located? How can I visit there?We want to see have

     A:  Our factory located at No.786 Century Avenue, Jiaonan, Qingdao, Shandong province, China.

One hour driving to Qingdao international airport, railway station,

Kindly send your schedule, so that we can pick you up and book hotels as you require.



3. Q:  What are your main products?

     A:  Our machines are in famous domestic and foreign customers. And main products are conveyor belt vulcanizes, conveyor belt sectional vulcanize, conveyor belt splice machine, conveyor belt repair machine and other rubber machine.



4. Q:  How does your factory do regarding quality control?

     A:  Quality is priority and we have our own quality control department. We will make a strict inspecting before the machines leave the factory.



5 .Q:  Are the technical parameter is fixed?

     A:  Basically, each model corresponding to the related machine. But we can design different type machine according to the client’s requirement.



6 How to send us your enquiry? Kindly tell me answer

 -1 what is your conveyor belt size ? material?Tensile Strength the width of the vulcanization?

-2 Leave your Email,cellphong? What kind of  app do you usually use? Skype/Wechat/ WhatsApp/viber? so that we can talk efficiently
