energy & Portable Cooling Belt Water Mining Press Vulcanizing Machine

1.0 Sets
MOQ
energy & Portable Cooling Belt Water Mining Press Vulcanizing Machine
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Type: Vulcanizer
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 6 Months
Core Components: Pump
Tire Machine Type: Tire Building Machine
Voltage: 380 V
Dimension(L*W*H): 2620X1000X980mm
Warranty: 1 Year
Key Selling Points: High Safety Level
Power (kW): 36 kW
Weight (KG): 822 KG
Applicable Industries: Energy & Mining
Showroom Location: None
Product name: Rubber vulcanizer
Belt Width: 1000 mm
Usage: Conveyor belt hot vulcanization
Raw material: Alumnium
Weight: 1000 KG
Advantage: High Efficiency
Heating material: Rubber
Pressure: 1.5 MPa
Output Power: 9.8-36 KW
Temperature: 0-200℃
After-sales Service Provided: Online support
After Warranty Service: Video technical support, Online support
Local Service Location: None
Certificazione: ISO9001
Informazioni di base
Certificazione: ISO9001
Termini di pagamento e spedizione
Packaging Details: 1. Package: Plywood case, wooden box or pallet 2. Max. weight for each package: 1500 kg 3. Standard dimension: 1800*1100*800 mm 4. Special packing requirement.
Supply Ability: 100 Set/Sets per Month
Descrizione di prodotto
Product Description

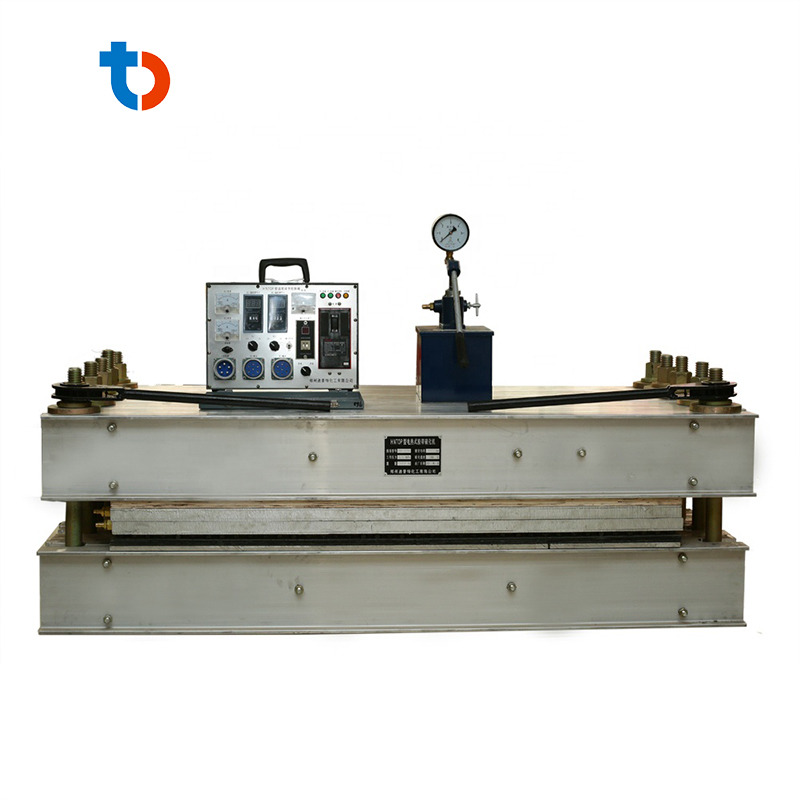

1000 mm conveyor belt portable electric air cooled hot splicing vulcanizing press machine jointing curing vulcanizer

Conveyor belt hot vulcanizing tools, also called conveyor belt splicing machine or belt vulcanizing press machine. It's vulcanize equipment and tools for repairing & splicing of conveyor belt. It suits for various conveyor belt, such as EP, Rubber, Nylon,Canvas and Steel cord belt, etc.

The belt vulcanizer is dependable, lightweight and portable machine, which is widely used in the field of metallurgy, mining, power plants, ports, building materials, cement, coal mine, chemical industry, etc. Heating plates are available for rhombic, rectangular and modular type (two or more sets of heating plates together).
Feature


High pressure water pump, adopted three cylinder plunger pump driven by single-phase machine, with the characteristics of compact structure, small volume, reliable, maintenance fridendly, etc......


Sturdy heating plate with hydraulic pressure system ensures temperature uniformity, high pressure can reach Max. 2.0 MPa (20 bars or 290 psi);Heating plate including air or water cooling.



Cross Beam: lightweight & high strength aluminum alloy;Tensioning bolts will increase the safety level.
Bai-ott conveyor belt vulcanizing press just take no more than 20 mins cooling time to 60℃, more efficenicy.
Electronic control box is easy to operate and will make sure the vulcanizing temperature.
Equiped with electric pump will shorten working time.
Specification
