Casa /Prodotti/Cinghia Sander Machine/Floor Board.MDF Laminate.HDF Laminated 630mm to 1300mm Width easywinmach Calibrating Wide Belt Sander Sanding Machine

Floor Board.MDF Laminate.HDF Laminated 630mm to 1300mm Width easywinmach Calibrating Wide Belt Sander Sanding Machine

1.0 Sets
MOQ
Floor Board.MDF Laminate.HDF Laminated 630mm to 1300mm Width easywinmach Calibrating Wide Belt Sander Sanding Machine
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Condition: New
Type: Sander
Voltage: 380V
Dimension(L*W*H): 1800*1200*2100MM
Weight (KG): 1200 kg
Applicable Industries: Manufacturing Plant, furtniure factory/carpentry
Warranty: 1 Year
Key Selling Points: high stability woodworking sander
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Motor, PLC
Usage: Sander wood
Name: sander wood machine
Power(W): 20.25KW
Application: Flooring Board.MDF Laminate.HDF Laminated
Working methods: automatic
Keywords: wood sanding and surface polishing
Special: Advanced dynamic balance detection
Quality: high stability,high safety
Feeding speed: 6-30m/min
Working thickness: 3-110mm
Min.Working Length: 500mm
Informazioni di base
Termini di pagamento e spedizione
Packaging Details: inside is strech film,outside is plywood cases.
Supply Ability: 100 Set/Sets per Month wood wide belt sanding machine
Descrizione di prodotto
Product Description

Woodworking wide belt sander (heavy duty sanding machine) is mainly used for wood sanding and surface polishing,like solid wood panels, composite floor, panel furniture, artificial stone, handicrafts, wood plastic products and other workpieces.

  • The front sand frame is an adjustable steel roller, which is easy to operate, and the fixed thickness roller and the sanding belt are combined, and high precision sanding effects.

  • Occur fault, the equipment is powered off, the brakes, and the conveyor belt are protected and down. which protects the workpieces from no damage.

  • Advanced dynamic balance detection for fixed thickness roller,steel roller, belt wheel,which make the machine run more stable.

  • Max working width:630mm,1000mm,1300mm for choice

  • Microcomputer controls the lifting of the conveying belt, low error, flexible and fast.

Technical Parameter

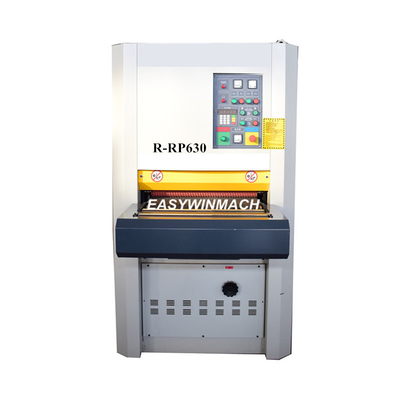

Model R-RP630
Max.Working Width 630mm
Min.Working Length 500mm
Working thickness 3-110mm
Feeding Speed 6-30m/min
Total Power 20.25KW
No.1 Abrasive belt speed 20m/s
NO.2 Abrasive belt speed 18m/s
Size of Abrasive belt 650*1920mm
First Roller Diameter 190mm
Second Roller Diameter 190mm
Working Air Pressure 0.6Mpa
Volumn of Dust Collector 8000m3/h
Dimension 1800*1200*2100mm
Net Weight 1200KG

Detailed Images

Our Factory

Packaging & Shipping

Strech film is inside,Plywood cases is Outside.
