Casa /Prodotti/Cinghia Sander Machine/Factory Belt Calibrating Sanding Machine / Solid Wood Sander Machine For Wood

Factory Belt Calibrating Sanding Machine / Solid Wood Sander Machine For Wood

1 Set
MOQ
$10,800.00(1 - 1 Sets) $10,300.00(>=2 Sets)
prezzo
Factory Belt Calibrating Sanding Machine / Solid Wood Sander Machine For Wood
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Condition: New
Machine Type: Wood Sanding Machine
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Warranty of core components: 1 Year
Core Components: Engine, Bearing, Gearbox, Motor, Gear
Warranty: 1 Year
Weight (KG): 4000 KG
Power (kW): 78.55
Key Selling Points: High Productivity
Showroom Location: None
Applicable Industries: Manufacturing Plant, Retail, Other
After-sales Service Provided: Video technical support
Informazioni di base
Termini di pagamento e spedizione
Packaging Details: stretch film or wooden packing
Supply Ability: 40 Set/Sets per Month
Descrizione di prodotto

Hydraulic clamp carrier

Two sides working

Hydraulic clamp carrier

6,8,10,14,20,30,40 lines

Door/picture frame assembly

Two sides working

Wide belt sander

steel roller +rubber roller(with air pad)

Plywood sanding machine

One head (with air pad)

Planer sander

planer+sanding+polishing

Veneer stitching machine

Brush sanding machine

2 set roller+2 set disc brush+ 2 set scrubbing brush.

Veneer grinding machine

Hot press splicing cutter

Automatic

Logo printing machine

Mark logo printing

Sliding table saw

Product Description

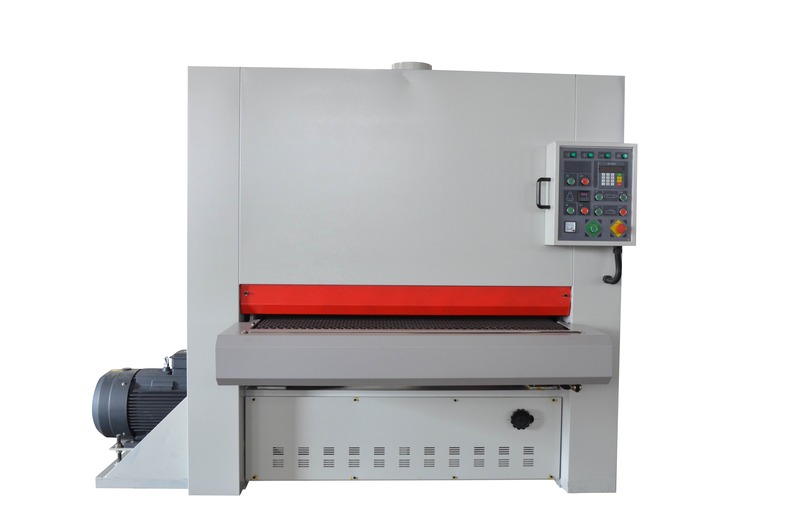

Belt calibrating sanding machine/solid wood sander machine

The machine is the calibtation sander , suitable for wood panels, block board, cement fiberboard, insulation panels, ceramic fiber , glass fiber, wall panels, wood products and other artifacts.

Details:
1. Max. working width is 1300mm
2. Board thickness digital displaying
3. Sanding belt with Automatic air blowing
4. Has the more effective dust outlet connecting.
5. End has brush roller for better cleaning.
6. When power cuts, conveyor bed descending automatically to protect the board safe.
7. Front press roller using avoiding injuring workers.
8. Plc control (optional)
9. Vacuum working table (optional)
Product Paramenters
Type
R-R1300
R-R1000
Max. working width
40-1300 mm
30-1000mm
Working thickness
2.5-110 mm
2.5-120mm
NO.1 Sanding belt speed
20 m/s
20m/s
NO.2 Sanding belt speed
20 m/s
18m/s
Sanding belt size
1330*2200 mm
1020*2000mm
Conveyor speed
6-38 m/min
4-16 m/s
Feeding motor
5.5kw
0.55MPA
Total power
78.55 kw
28.05 kw
Working pressure
0.6 Mpa
0.55MPA
Consumption compressed air
1.5 m3/h
1.2m3/min
Collected dust air
25-30 m/s
25-30 m/s
Overall dimensions
2700*2100*2100 mm
2100*1650*1900mm
Net weight
4000 kg
2200kg
Details Images
Product packaging
