Vulcanizing Hot Splicing Vulcanizing Seal And Press Conveyor Belt Repair

1.0 Sets
MOQ
$5,000.00(1 - 2 Sets) $3,000.00(3 - 4 Sets) $2,500.00(>=5 Sets)
prezzo
Vulcanizing Hot Splicing Vulcanizing Seal And Press Conveyor Belt Repair
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Type: Vulcanizer
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Engine, Pressure vessel, Pump
Voltage: 380V
Dimension(L*W*H): 1800*500*650
Year: 2020
Warranty: 3 years
Key Selling Points: Competitive Price
Power (kW): 36 kW
Weight (KG): 800 KG
Applicable Industries: Energy & Mining
Showroom Location: None
Raw material: Aluminum Alloy
Application: Vulcanizing Press
Advantage: High Efficiency
Function: Rubber Product Vulcanization
Usage: Rubbr Vulcanization
Cooling method: Cooling Water
Heating: Electric Heating
Motor: 220V/380V
Operation: 1-2 Workers
Pressure: 1.5 MPa
After-sales Service Provided: Video technical support
After Warranty Service: Video technical support
Local Service Location: None
Certificazione: ISO
Informazioni di base
Certificazione: ISO
Termini di pagamento e spedizione
Packaging Details: wooden case
Descrizione di prodotto

Conveyor Belt Hot Splicing Vulcanizing Joint and Repair

Product Description

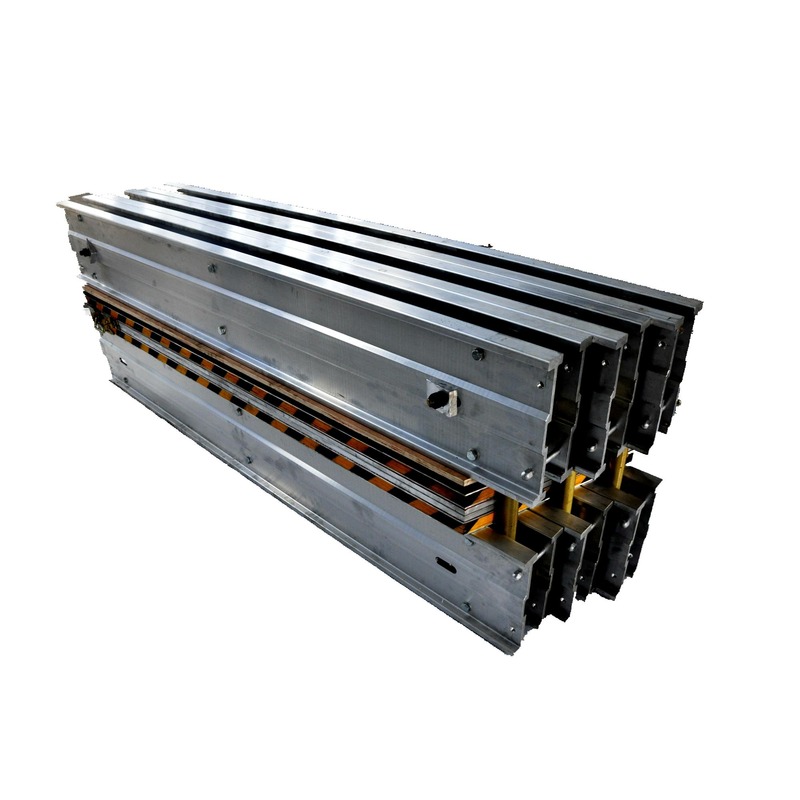

CONVEYOR BELT VULCANIZING MACHINE

Used for the heating vulcanization of joint connection and reparation of fabric ply conveyor belt, steel cord conveyor belt, PVC PVG solid woven fire-resistant conveyor belts.

Consists of aluminum beam, heating plate, water bag, electric cabinet and other auxiliary tools.

Technical Parameters:
1. Vulcanization pressure: 1.0 to 2.0 Mpa;
2. Vulcanization temperature: 145 °C ;
3. Difference in surface temperature of vulcanized plate: ± 3 degree;
4. water cooling system (less than 10 mins to cool from 145°C to normal temperature) or natural cooling system (more than 2 hours
to cool down)
5. electric pump or hand pump; if choose electric pump, please advise voltage, such as 380V 50HZ 3 Phases;
6. Output power of Electronic Control Cabinet ≤36 KW (Different model different power);
7. Temperature adjustment range: 0 to 200° ;
8. Timing adjustment range: 0 to 99 min;
9. After the pressurization of 0.8 MPa, the gap between upper and lower heating plate is not more than 0.4 mm
SPECIFICATION
Suitable for conveyor width:
680mm-2200mm
Heating plate length:
600mm,900mm and others
Cementing angle:
0°:16.7°
Curing pressure:
8Bar-12Bar
Cooling way:
strong refrigeration/ Natural cold
Application of conveyor belt thickness:
≤40mm
