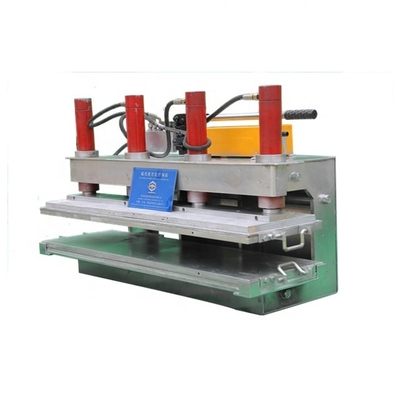

Casa /Prodotti/Apparecchiature di vulcanizzazione a cintura/Automatic Belt-Edge Repair Machine Vulcanizing Air Cooled Hot Plate Belt Repair Press Machine Equipment Conveyor Belt Hydraulic Splicing Vulcanizer ANTAI

Automatic Belt-Edge Repair Machine Vulcanizing Air Cooled Hot Plate Belt Repair Press Machine Equipment Conveyor Belt Hydraulic Splicing Vulcanizer ANTAI

1.0 Sets
MOQ
$2,650.00(1 - 2 Sets) $2,450.00(>=3 Sets)
prezzo
Automatic Belt-Edge Repair Machine Vulcanizing Air Cooled Hot Plate Belt Repair Press Machine Equipment Conveyor Belt Hydraulic Splicing Vulcanizer ANTAI
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Type: Vulcanizer
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2021
Warranty of core components: 1 Year
Core Components: Pressure vessel, Pump
Voltage: Customer Request
Dimension(L*W*H): 1200*450*350 MM
Year: 2021
Warranty: 1 Year
Key Selling Points: High Safety Level
Power (kW): 10.8 kW
Weight (KG): 145 KG
Applicable Industries: Machinery Repair Shops, Construction works , Energy & Mining
Showroom Location: Turkey, Brazil, Russia, Thailand, Argentina
Product name: Edge repair vulcanizing press
Function: hot splicing vulcanizing machine
Application: Belt-edge repair vulcanizing machine
Machine Type: Heavy duty conveyor belt vulcanizer
Material: High strength aluminum alloy
Belt Vulcanizing Temperature: 145℃
Working Pressure: 0~2MPA
Heating Time: Less Than 25 Minutes
Curing Time Set Adjustable Range: 0-99 minutes
Max Conveyor Belt Width: 500-3500mm
After-sales Service Provided: Video technical support
After Warranty Service: Video technical support, Online support, Spare parts
Local Service Location: Turkey, India, Russia, Thailand, Australia, Argentina
Certificazione: CE ISO
Informazioni di base
Certificazione: CE ISO
Termini di pagamento e spedizione
Packaging Details: Well packing by wooden box for oversea shipping
Supply Ability: 300 Set/Sets per Month
Descrizione di prodotto
Products Description
Product Name
Factory Direct Sales 1200 MM Edge Repair Vulcanizing Press Conveyor Belt Heating Press
Keywords
Belt-edge repair vulcanizing machine; Belt rubber conveyor belt hot splicing
Type
hot splicing vulcanizing press
Size(L*W*H mm)
1200*450*350

XL strip vulcanizing repair machine

XL strip vulcanizing repair machine ,also known as the belt-edge repair vulcanizing machine, is mainly applied to repair the long-distance damage ,longitudinal piercing as well as edge damages on the conveyor belt on site. It’s time-saving, efficient and easy operated.
Main Parts
Specification
Use Installation instructions：
1.Fill glue inthe damaged areas that need to be repaired(see the adhesive part in the vulcanization process of the belt joints, or the demonstration by our staff when the equipment is being tested);
2.Put the bottom plate, water pressure plate and lower heating plate under the damaged areasof the belt according to the structural diagram.
3.Put the upper heating plate,Insulation board on the damaged areasof the belt.Align the top and bottom plates.
4. Lockedequidistantlythen tighten the bolts.
5.Get the first power wire well connected to electric control box. Connect the second wire with electric control box and the upper and down plates.Note that it corresponds to the signon the electric control box.
6.Connect the end of the high pressure pipe with inlet opening of water pressure plate. And connect another end of the high-pressure pipe with water output hole of water pump.Switch on, add pressure upon vulcanizing machine.
(See the operation method of ATX electric control box).
The equipment can be customized as two type: oil pressure and water pressure.
Product packaging
We use fumigation-free box as our packing box.It has clean and tidy appearance,easy to load and unload.Comply with the export standards of the customs.
Customer Photos
Our Plant
Certifications
We are the Direct Manufacturer of conveyor belt vulcanizing equipment. Our company is the direct manufacturer supplier in China for the production of the pressurized bag. ALMEX STYLE available,with lower ANTAI price.
Yes! We promise you the lowest price in China. In case of the higher price you may get from our domestic trading company Please keep in touch with me.
Contact with me
If you need the latest catalogue of our conveyor belt vulcanizing press or have any problem about our products,please feel free to contact with me. I will do my best to provide you our professional service.
Here is my EMAIL address:
1967541415@qq.com (Sales manager of ANTAI OVERSEAS DPT)
TEL: +86 15665751353
PHONE: +86 15665751353
