Garment Shops Beltwin All In One Air Cooling Hot Air Vulcanizing Equipment For Joint PVC PU Conveyor Belt Splicing Machine

1 Unit
MOQ
$6,000.00(1 - 4 Units) $5,500.00(>=5 Units)
prezzo
Garment Shops Beltwin All In One Air Cooling Hot Air Vulcanizing Equipment For Joint PVC PU Conveyor Belt Splicing Machine
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Type: Vulcanizer
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Motor
Voltage: 220V 230V 380V 460V
Dimension(L*W*H): 790-2500*430-450*420-520
Year: 2020, 2020
Warranty: 1 Year
Key Selling Points: Automatic
Power (kW): 1.2 kW
Weight (KG): 10 KG
Applicable Industries: Garment Shops, Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Food Shop, Printing Shops, Energy & Mining, Food & Beverage Shops
Showroom Location: United Kingdom
Width: 300mm-2100mm
Weight: 10kg-72kg
Material: Aluminum Alloy
Certificazione: CE
Function: Splicing
After Warranty Service: Online
Local Service Location: United Kingdom
Informazioni di base
Certificazione: CE
Termini di pagamento e spedizione
Packaging Details: Wooden box
Supply Ability: 10 Unit/Units per Month
Descrizione di prodotto
Beltwin

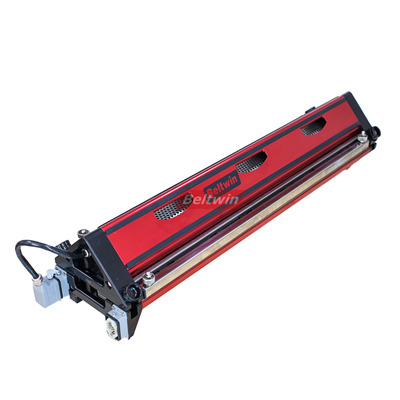

 Beltwin All in One Air Cooling Press

Feature:This air cooled press has all components integrated into the tool,allowing a user to simply plug it into electricity and it is ready for use.Fast and Portable Splicing,can be bring to anywhere easily.





Technical Datasheet:

Model

PA300

PA600

PA900

PA1200

PA1500

Effective Length

305mm

610mm

914mm

1219mm

1524mm

Effective Width

130mm

130mm

130mm

130mm

130mm

Weight Lower part

10kg

16kg

20kg

28.5kg

30kg

Weight Upper Part

11kg

13kg

18kg

25.5kg

30kg

Total Weight

21kg

30kg

38kg

54kg

62kg

Overall Height

220mm

225mm

225mm

225mm

225mm

Overall Width

250mm

250mm

250mm

250mm

250mm

Overall Length

505mm

805mm

1105mm

1405mm

1705mm

Max Working Pressure

2Bar/

28PSI

2Bar/

28PSI

2Bar/

28PSI

2Bar/

28PSI

2Bar/

28PSI

Max Temperature

200℃

200℃

200℃

200℃

200℃

Power

1.2KW

3.2KW

4.5KW

5.8KW

7KW

Machine&Flight Case Weight

39kg

52kg

66kg

80kg

95kg

Gross Weight

50kg

72kg

99kg

104kg

127kg

Packing

(L*W*H)

790*430*420

1090*430*420

1390*430*420

1728*450*430

1990*430*420





Air Cooling

Use High quality axial fan from Taiwan,with CE.

Anodizing surface,no painting.

Clamp Bar Studs&Thumbnuts

Fix tightly long belt in case of sliding

Completed Splicing Precess within 12 mins

Eurothem Controller from UK,

SMC pressure controller from Japan.

Electric Connect(500V)

From WAIN ELECTRICAL with CE.

Simply plug it into electricity and it is ready for use.
