Casa /Prodotti/Giuntatrice del nastro trasportatore/Garment Shops Beltwin PVC PU Conveyor Belt Hot Splice All In One Welding Kit

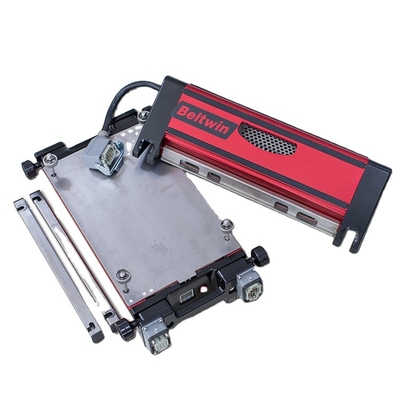

Garment Shops Beltwin PVC PU Conveyor Belt Hot Splice All In One Welding Kit

1 Unit
MOQ
$5,000.00(>=1 Units)
prezzo
Garment Shops Beltwin PVC PU Conveyor Belt Hot Splice All In One Welding Kit
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Type: Vulcanizer
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: /
Voltage: 220V/380V
Dimension(L*W*H): 790x430x420mm
Warranty: 1 Year
Key Selling Points: Automatic
Power (kW): 1.2 kW
Weight (KG): 56 KG
Applicable Industries: Garment Shops, Building Material Shops, Food Shop, Printing Shops, Energy & Mining, Food & Beverage Shops
Showroom Location: United Kingdom
After-sales Service Provided: Engineers available to service machinery overseas, Online support
Color: Red
For Max Belt Width: 300 mm
Cooling System: Air Cooling
Belt: PVC PU PVK Belt
Working: Heating/ Welding
Year: 2019
Function: Splicing
Material: Aluminum Alloy
After Warranty Service: Video technical support, Online support
Local Service Location: United Kingdom
Certificazione: CE
Informazioni di base
Certificazione: CE
Termini di pagamento e spedizione
Packaging Details: Wooden box
Supply Ability: 10 Unit/Units per Month
Descrizione di prodotto

Beltwin High Quality Portable Machine All In One Automatic Air Cooling Splicing Hot Press For PVC PU PVK Conveyor Belt

Model

300

600

900

1200

1500

Effective length

305mm / 12″

610mm / 24″

914mm / 36″

1219 mm / 48″

1524 mm / 60″

Effective width

120mm / 4.7″

120mm / 4.7″

120mm / 4.7″

120 mm / 4.7″

120 mm / 4.7″

Weight lower part

11.5 kg

18kg

23kg

28.5 kg

32 kg

Weight upper part

12kg

13kg

18kg

25.5 kg

30 kg

Total weight

21kg

30kg

38kg

54 kg

62 kg

Overall height

220mm

225mm

225mm

225mm

225mm

Max. pressure

2 Bar / 28 PSI

2 Bar / 28 PSI

2 Bar / 28 PSI

2 Bar / 28 PSI

2 Bar / 28 PSI

Max. temperature

200 ℃/390 ℉

200 ℃/ 390 ℉

200 ℃/ 390 ℉

200  ℃/ 390 ℉

200 ℃/ 390 ℉

Packaging list(L x W x H)

790x430x420mm

1090x430x420mm

1390x430x420mm

1720*450*430mm

2030*470*410mm

Gross weight

50 kg

72 kg

85kg

104 kg

127 kg




New Type

Model

1800

2100

Effective length

1829mm / 72″

2360mm / 92″

Effective width

120mm / 4.7″

120mm / 4.7″

Weight lower part

32kg

36kg

Weight upper part

42kg

55kg

Total weight

111kg

134kg

Overall height

255mm

255mm

Max. pressure

1.5 Bar

1.5 Bar

Max. temperature

200 ℃/390℉

200 ℃/ 390 ℉

Packaging list (L x W x H)

2330x460x550mm

2567x352x310mm

Gross weight

40 kg

56 kg

How to make effect better?

We could line straightly out on the position of heating part as below:



It’s for better matching and better effect as below:

More Splicing Tips, we would like to offer to you for free

Our Services


Company Information

Conveyor Belt Splicing on Steel Cord Belts

Conveyor Belt Splicing, Fabric Belts, PVC
Conveyor Belt Repairs
Transmission Belts, Tangential Belt, Spindle Tape Splicing



Good Feedback

FAQ



01) Q: Normal delivery time?

A: We have table produce line, hot sale products normally HAVE STOCK. If customized, need about 30 working days

02) Q: Will you test the machine before shipping?
A: Yes, each machine, we will install and test before shipping. And testing pressure is higher than working pressure.


03) Q: Can you print our logo or without any logo?
A: It’s no problem OEM. Before order, please send us the clear document of your logo, also the authorization paper to allow us to print your logo.


04) Q: Whether can visit your workshop and to see how to process the machine?
A: No problems, you are always welcomed to visit us, before order or before shipping.If need to see how to process the machines, please inform us what type machines you want to see, we will try to prepare the similar machines ready before you come.


05) Q: What's the payment term?

A:Normally we accept T/T 30% as deposit before production, pay the rest before delivery.

Credict Assurance is the best choice. And other methods of payment need negotiation.
