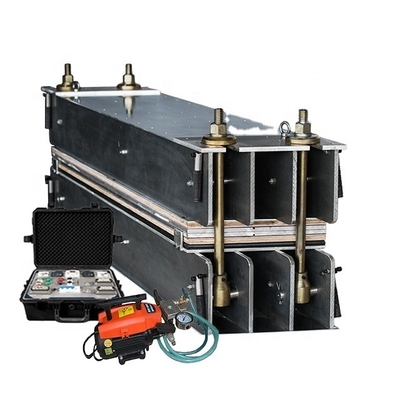

Heavy Duty Machinery Repair Shops Frame Style Belt Vulcanizer With Rapid Cooling System For Rubber Conveyor Belt

1 Set
MOQ
$4,800.00(1 - 2 Sets) $3,600.00(>=3 Sets)
prezzo
Heavy Duty Machinery Repair Shops Frame Style Belt Vulcanizer With Rapid Cooling System For Rubber Conveyor Belt
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Type: Vulcanizer
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2021
Warranty of core components: 1 Year
Core Components: Pressure vessel, Pump
Voltage: Customer Request
Dimension(L*W*H): 940*500*372mm
Year: 2021
Warranty: 1 Year
Key Selling Points: High Safety Level
Power (kW): 11 kW
Weight (KG): 143 KG
Applicable Industries: Machinery Repair Shops, Construction works , Energy & Mining
Showroom Location: Turkey, Brazil, Russia, Thailand, Argentina
Product name: Belt Vulcanizer With Rapid Cooling System For Rubber Conveyor Belt
Material: High strength aluminum alloy
Max splicing length: 600mm
Max Conveyor Belt Width: 500-3500mm
Cooling time: down to 80 degrees less than 20 minutes
Heating Time: Less Than 25 Minutes
Belt Vulcanizing Temperature: 145℃
Working Pressure: 0~2MPA
Curing Time Set Adjustable Range: 0-99 minutes
After-sales Service Provided: video support
Informazioni di base
Termini di pagamento e spedizione
Packaging Details: Well packing by wooden box for oversea shipping
Supply Ability: 5000 Set/Sets per Year
Descrizione di prodotto
Products Description
Product Name
2 plate conveyor belt vulcanizing machine
Can splicing max length
500mm
Belt width
500mm-1600mm
Size(L*W*H mm)
940*500*372 MM
Adapted conveyor belt
EP, Rubber, Nylon, Canvas etc.
Application
mining, power plants, ports, building materials, cement, coal mine, chemical industry, etc.
2 plate conveyor belt vulcanizing machine

Lightweight Vulcanizing Press for Light Rubber Conveyor Belt

Lightweight rubber conveyor belt vulcanizing press, 2-piece press, aluminum frame style, designed for quick and easy operation, easy to move to any desired splice position, lightweight and high work efficiency.
Two light and robust aluminium frames comprise upper and lower portions of the press. It’s equipped with two foldable handles on
both ends of the upper frame, easy to move up and down. The control box feature dual temperature control, timer and indication system.
Features:
* Solid aluminum frame style.
* Lightweight, portable frame press.
* Fast heating system, use reliable Silicone Heating Elements.
 * Rapid cooling system incorporated in platen design, cooling down from 145°C to 75° C, only 5 mins.
Click here for more information !!!
Application
It's a vulcanizing equipment and tool for repairing & splicing of conveyor belt.
The belt vulcanizer is dependable, lightweight and portable machine, which is widely used in the field of metallurgy, mining, power plants, ports, building materials, cement, coal mine, chemical industry,
etc.
It suits for various conveyor belts, such as EP, Rubber, Nylon, etc.

SPECIFICATIONS
1. Voltage: 220V 380V 415V 525V 660V 1140V 50HZ 60HZ(Customize available according to your requirement)
2. Quick water cooling device: 15 minutes From 145 ℃down to 80 ℃or even lower
3.Cooling source: Water or Air
4.Heating source: Electricity
5. Heating time: from room temperature to vulcanization temperature need less than 20 minutes
6. Heating plate surface temperature difference: ± 1 ℃
7. The temperature adjustment range: 0 ~ 200 ℃(custom)
8. Vulcanization pressure: Max 2.5MPa.
9. Curing temperature: 0 ~ 99min (according to the thickness of the belt to adjust)
Usually 10mm~25mins, 20mm~35mins
10. Automatic mute pressure pump
11. Automatic control panel: insulating and waterproof, security alarm, Auto power-off when reach the vulcanization temperature.
Upgrading explosion proof control box option available.
Our Advantages

HEATING PLATEN

Custom extruded plank, silicone heating elements (up to 180°C/356°F), and durable composite insulating packaging are used to
construct a flexible platen that contours to belt irregularities.
It takes 15~25mins rise up to vulcanizing temperature (about 145°C).
The flush “quick connect” make smooth profile. Recessed power connections are sealed for moisture resistance.

PRESSURE SYSTEM

Signature ANTAI “Pressure Bag” uniform pressure system is lighter up to 4 times than the outdated pressure bag.
The pressure bag can reach full expansion in one time and ensure the uniform pressure up to 3.0MPa.

PRESSURE PUMP

Automatic mute pressure pump own the features as smaller size, lighter weight and high impact-resistance. Compared with the manual pump, the operating pressure can be 23kg/cm2 (2.3MPa).

COOLING SYSTEM (Option Available)

Custom “Extruded Plank” cooling system within platens is made by several cuprum pipelines, it only takes about 20mins to drop the temperature down to 60°C.

AUTOMATIC CONTROL BOX

With automatic temperature control, security alarm and automatically switch off the power. The control box can monitor the temperature of 3-5 different points on each heating platen at the same time to ensure the result of jointing.
Main Parts
ZLJ conveyor belt vulcanizing machines can be used by one or multiple combinations according to the joint length of the belt.The main configuration of a single vulcanizing machine is as following:
Name
Amount
The whole machine
1 set
steel pad
1 set
Clamping device
1 set
Electric control box
1 set
Power cable
1 root
 Control cable
2 root
 Thermal resistance
2 pieces
Water pump
1 set
Pressure pipe
3 roots
Model and Specifications
1.According to the Width of conveyor belt is divided into：500,650,800,1000,1200,1400,1600,1800, 2000,2200 (mm).
2.According to the Joint Length of conveyor belt is divided into ：250,300,350,400,500,600,700,800,1000,1200(mm).
3.According to Hot plate shape: rectangular-72°, parallelogram -90°.
4.According to Voltage: 220V,380 V,440V，660V or as customized.
5.According to the cooling method can be divided into：Fast water cooling type and natural cooling type.

Technical Characteristics
1.Heating: electric heating type.
2.Pressurized: hydraulic type.
3.Supply voltage: 1140 V，660 V，450 V，415 V，380 V，220 V，50 Hz or as customized.
4.Heating power of a single heating plate per unit area ≥ 7000 W / ㎡.
5.Equipped with digital temperature control system, vulcanizing temperature adjustable 0-199 °C.
6.Heating time(room temperature raise to 145°C)≤25 mins.
7.Vulcanization pressure can be set to≤2 MPa.
8.Automatic control of temperature rise, heat preservation and temperature limit protection.
Technical Parameters (Reference)
(Except for 830 mm, 1000 mm and other conventional sizes, any non-standard size is accepted.)
Product packaging
We use fumigation-free box as our packing box.It has clean and tidy appearance,easy to load and unload.Comply with the export standards of the customs.
