Machinery Repair Shops Vulcanizing Hot Press Splicing Machine For Rubber Belt TP-800

1 Set
MOQ
$4,300.00(1 - 2 Sets) $4,200.00(>=3 Sets)
prezzo
Machinery Repair Shops Vulcanizing Hot Press Splicing Machine For Rubber Belt TP-800
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Type: Vulcanizer
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2022
Warranty of core components: 1 Year
Core Components: Pressure vessel
Voltage: 380v
Dimension(L*W*H): 1220x830x750mm
Year: 2022
Warranty: 1 Year
Key Selling Points: Long Service Life
Power (kW): 11.2 kW
Weight (KG): 550 KG
Applicable Industries: Machinery Repair Shops, Construction works , Energy & Mining
Showroom Location: Philippines, Chile, Colombia
Raw material: Aluminum Alloy
Pressure: 0-1.8Mpa
Cooling time: 20 minutes
Cooling system: Water Cooler System
Heating Method: Electricity Heating
Warming up time: 25 minutes
Heating plate angle: 18/22
Temperature: 145+/-3℃
After-sales Service Provided: Free spare parts
Local Service Location: Russia
Informazioni di base
Termini di pagamento e spedizione
Packaging Details: wooden box
Supply Ability: 300 Set/Sets per Month
Descrizione di prodotto

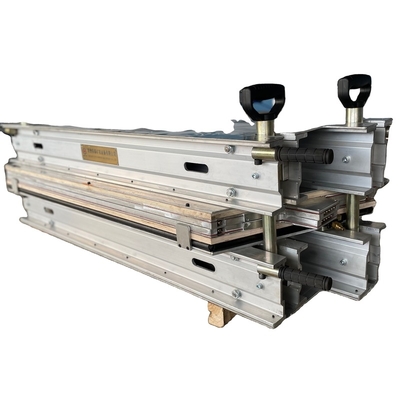

vulcanizing press hot splicing machine for rubber belt TP-800

vulcanizing press hot splicing machine for rubber belt TP-800



Product Display

This type of frame type conveyor belt joint vulcanizing press consists of 2 pieces press, aluminum frame style, designed for quick and easy operation, easy to move to any position, lightweight and high working efficiency.

Application

Frame type conveyor belt joint vulcanizing press is mainly applied to industries for splicing and repairing conveyor belts such as metallurgy, mine, power plant, port, dock, construction material cement, chemical industry, tobacco, and food automatic line field.

Specifications:

1. This type of conveyor belt joint vulcanizing press is designed for fast and dependable belt splicing

2. Lightweight, portable frame press

3. Use uniform pressure system, new style pressure bag, pls refer to below details.

4. Rapid cooling system within platens, cooling down from 145C to 75C, only 5mins.

5. Lightweight aluminum nut & bolt set

6. Some units can work together

7. Pressure bag system, can used for both water and air, one time molding, without metal frame, light weight, testing pressure out of our factory is 2.5MPA

8. Automatic control panel: with time control and digital temperature control. All the parts use high quality electric devices with CE certificated.

9. In case of electronic controller failure, manual operation is possible as well.

Item

Heating Board Size

Belt Width

Power

Overall Dimension

Weight

TP-650

830x810mm

650mm

9.2kw

1130x830x750mm

450kgs

TP-800

830x1020mm

800mm

11.2kw

1220x830x750mm

550kgs

TP-1000

830x1220mm

1000mm

16.5kw

1480x830x750mm

650kgs

TP-1200

830x1420mm

1200mm

18.6kw

1680x830x800mm

800kgs

TP-1400

830x1620mm

1400mm

20.8kw

1880x830x900mm

950kgs

TP-1600

830x1820mm

1600mm

22.2kw

2080x830x900mm

1150kgs

TP-1800

830x2020mm

1800mm

24.8kw

2280x830x900mm

1250kgs

TP-2000

830x2220mm

2000mm

27kw

2480x830x1200mm

1400kgs

TP-2200

830x2420mm

2200mm

28.8kw

2680x830x1200mm

1500kgs

TP-2400

830x2620mm

2400mm

30.2kw

2880x830x1200mm

1700kgs

Packaging & Shipping

We use fumigation-free box as our packing box.It has clean and tidy appearance ,easy to load and unload.Comply with the export standards of the customs.



Our Services

Inquiry and consulting support.

Sample testing support.

View our Factory.

24-Hours online service.

On demand customization.

Strong technical support and after-sale service.



Company Information

Qingdao Antai Mining Machinery Co., Ltd. is a professional manufacturer of conveyor belt vulcanizer. We have more than 20 years of experience in this field, with more than 40 employees, and are the direct manufacturer of conveyor belt vulcanization equipment. Our company is the only supplier of rubber pressure bags except ALMEX in China. We have our own factory. Welcome to Qingdao to visit us. Qingdao is really a beautiful city.
