Conveyor belts 1000mm splicing and hot vulcanizing press repair for pvc pvk conveyor belt

ANTAI is the leading manufacturer of conveyor belt vulcanizing equipment. ANTAI has been offering unique Sectional Vulcanizing Systems that provide strong, long-lasting splices, for over 27 years in china.

The Unique and Innovative belt splicing system designed to be portable and offer maximum versatility in splicing all types and sizes of conveyor belting. It’s intelligent, modular design and vast array of unique operating features, can handle all types of belt designs in every conveyor application.

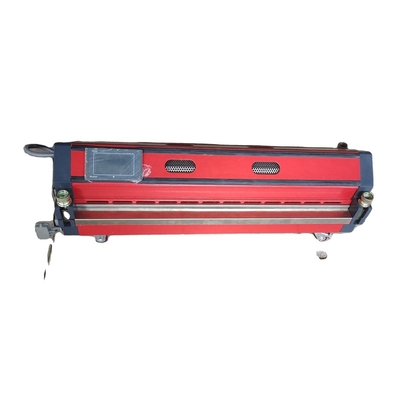

The ZLJ series belt vulcanizing machine (hereinafter referred to as vulcanizer) is an electrothermal type vulcanizing device used for on-site splicing of conveyor belts. With the advantages of advanced technology, compact structure and convenient usage, it's used for the vulcanized jointing of the belts mixed with canvas, nylon, steel cord, etc., and it's also suitable for the flame retarded, corrosion proof and other special belts. The application area of this kind of vulcanizer is very wide, it can be used in metallurgy, mining, power plant, port and wharf, building material factory, chemical factory and so on.

The Sectional vulcanizer offers equipment, which is portable and easy to set-up and remove from the site. It has accurate control and indication uniform temperature due to the unique element design and uniform pressure over the entire splice area. Components in this model are lightweight and easy to assemble.

FEATURES

• Signature ANTAI “Pressure Bag” uniform pressure system suitable to exert a maximum pressure 23Bar (2.3MPa/333 P.S.I)

• Custom “Copper Pipe” cooling system within platens.

• Innovative “Silicone Element” fast heating system.

• Automatic mute pressure pumps for operating pressure above 90 Bar.

• ZLJ platens are built to order with all dimensions offered to accommodate various belt widths.

• DELIXI electrical apparatus element assembled into insulating and waterproof control panel.

• All electrical systems are CE, SGS and BV approved.

SPECIFICATIONS

1.Light Aluminum alloy cross beams,high strength bolts and nuts suitable to exert a minimum pressure of 25 Bar .

2. Voltage: 220V 380V 415V 525V 660V 1140V 50HZ 60HZ(Customize available according to your requirement)
3. Quick water cooling device: 15~20 minutes From 145 ℃ down to 80 ℃ or even lower

4.Cooling source: Water or Air

5.Heating source: Electricity

6. Heating time: from room temperature to vulcanization temperature need less than 20 minutes
7. Heating plate surface temperature difference: ± 5 ℃
8. The temperature adjustment range: 0 ~ 200 ℃(custom)
9. Vulcanization pressure: Max 2.5MPa(25Bar).

10. Automatic mute pressure pump for operating pressure above 90 Bar.

11.  Automatic control panel: insulating and waterproof, security alarm, Auto power-off when reach the vulcanization temperature. Upgrading explosion proof control box option available.
