Light Spot Repair Vulcansing Mining Machine For Rubber Belt Fixing

1 Set
MOQ
$2,800.00(1 - 2 Sets) $2,400.00(>=3 Sets)
prezzo
Light Spot Repair Vulcansing Mining Machine For Rubber Belt Fixing
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Type: Vulcanizer
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2021
Warranty of core components: 1 Year
Core Components: Pressure vessel, Pump
Voltage: Customer Request
Dimension(L*W*H): 1300*350*780mm
Year: 2021
Warranty: 1 Year
Key Selling Points: High Safety Level
Power (kW): 1.9 kW
Weight (KG): 163 KG
Applicable Industries: Machinery Repair Shops, Construction works , Energy & Mining
Showroom Location: Turkey, Brazil, India, Russia, Thailand, Argentina
Product name: c clamp repair vulcanizing machine
Function: repair spot damage on the belt
Application: mining, cement, building, power plant, port transportation, chemical
Max belt width: 2400 MM
Material: High strength aluminum alloy
Belt Vulcanizing Temperature: 145℃
Working Pressure: 0~2 MPA
Heating Time: Less Than 25 Minutes
Curing Time Set Adjustable Range: 0-99 minutes
Max Conveyor Belt Width: less than 350 * 350 dot damage
Informazioni di base
Termini di pagamento e spedizione
Packaging Details: Well packing by wooden box for oversea shipping
Supply Ability: 300 Set/Sets per Month
Descrizione di prodotto
Products Description
Product Name
Spot Repair Vulcanizing Press C-clamp Repair Vulcanizer
Belt Width
From 600 up to 2400mm
Dimensions（L*W*H mm）
1300*300*780mm
Spot Repair Vulcanizing Press C-clamp Repair Vulcanizer

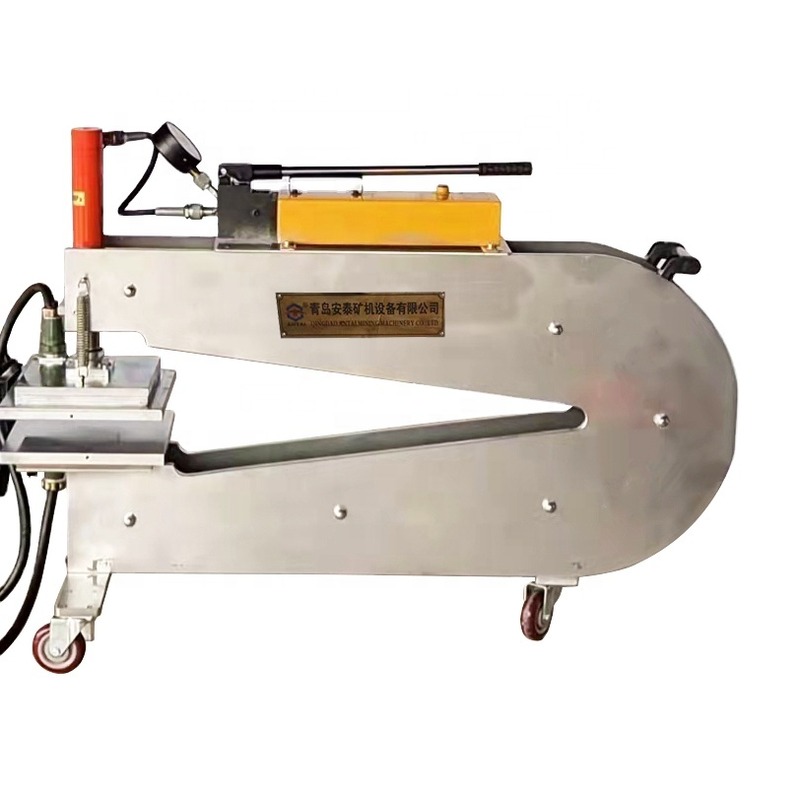

YXL hydraulic spot vulcanizing repair machine

YXL hydraulic spot vulcanizing repair machine, also known as C-clamp spot repair vulcanizer ,is an electric heating repair equipment for conveyor belt .During transportation, the surface of the belt may be damaged or pierced by the conveying material.Then the spot vulcanizing repair machine can be used to fix it .The machine consists of frame, two heating plates, an integrated hydraulic lifter and an electric control box.The frame is made of high-strength aluminum alloy, it’s small size, portable,safe and reliable.This machine is mainly applied to repair less than 350 * 350 dot damage.
Main Parts
Specification
Application method：
1. Transfer machine to the repair site.
2. Fill glue in the damaged areas that need to be repaired (see the adhesive part in the vulcanization process of the belt joints, or the demonstration by our staff when the equipment is being tested).
3. Place the frame under the belt and align it with the damaged area.
4. Place the down heating plate just below the damaged area of the belt and then place the upper frame.
5. Press the hydraulic lever until it reaches enough pressure level.
6. Get the first power wire well connected to the electrical control box. Connect the second wire with the electric control box and the upper and down plates.
Note that it corresponds to the sign on the electric control box.
7. Turn on the electric control box and start the vulcanizing repair process.

Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Product packaging
We use fumigation-free box as our packing box.It has clean and tidy appearance,easy to load and unload.Comply with the export standards of the customs.
Customer Photos
Our Plant
Certifications
We are the Direct Manufacturer of conveyor belt vulcanizing equipment. Our company is the direct manufacturer supplier in China for the production of the pressurized bag. ALMEX STYLE available,with lower ANTAI price.
Yes! We promise you the lowest price in China. In case of the higher price you may get from our domestic trading company Please keep in touch with me.
Contact with me
If you need the latest catalogue of our conveyor belt vulcanizing press or have any problem about our products,please feel free to contact with me. I will do my best to provide you our professional service.
Here is my EMAIL address:
sherry@antai86.com (Sales manager of ANTAI OVERSEAS DPT)
TEL: +86 15665751353
Whatsapp: +86 15665751353
